Every job starts with a documented condition assessment: winding resistance, insulation resistance and polarization index, surge comparison, core-loss and hot-spot testing, mechanical dimensional inspection and vibration baseline. The report tells you what failed, why, and what the repair will cost before any work begins.

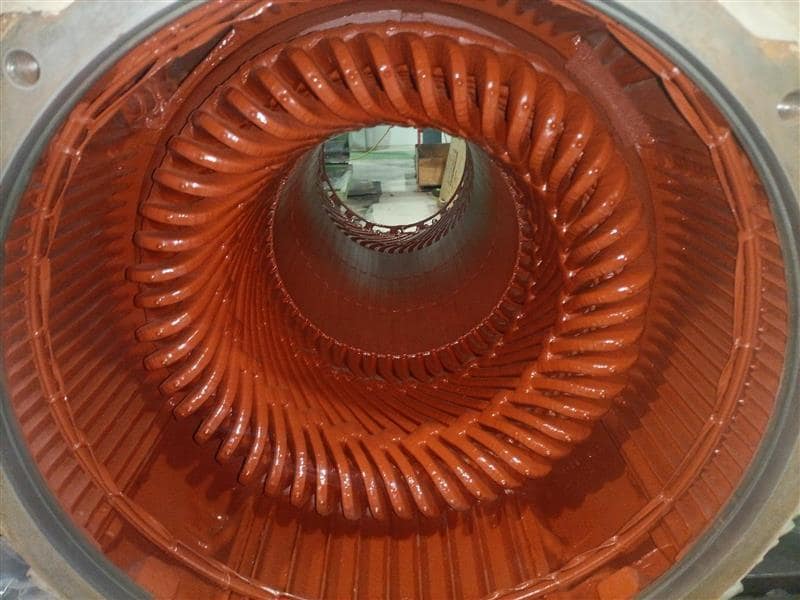

Rewinding is performed in an isolated, temperature-controlled winding area with automatic coil and rotor winding machines, slot-lining forming equipment and a VPI and dipping system, followed by curing in a temperature-controlled oven. Class F and Class H insulation systems are available; original winding data is recorded for future reference.
Before dispatch, machines are solo-run tested at up to 4,000 kW and 13.8 kV AC (1,000 V DC) on our 4 m × 2 m test bed, dynamically balanced on a 5-ton balancing machine and released with a complete test certificate.
What is included
AC motor overhauling, rewinding, condition assessment & field services
Low, medium and high voltage induction and synchronous machines up to 13.8 kV and 20 tons.
DC motor overhauling, rewinding, condition assessment & field services
Armature and field rewinding, commutator machining and undercutting, brush-gear restoration.
Generator overhauling, rewinding, condition assessment & field services
Stator and rotor rewinding, exciter repair, diode and AVR checks, on-site load testing.
Transformer overhauling, rewinding, condition assessment & field services
Distribution and special transformers: winding replacement, oil processing, bushings and tap-changer service.
Magnetic coils repair & rewinding
Lifting magnets, brake and clutch coils, solenoids and electromagnet assemblies.
ElMagco brakes overhauling, rewinding, condition monitoring & field services
Eddy-current drawworks brakes for drilling rigs, including coil rewinding and water-jacket restoration.
